The Onken
The Onken from Turn End Audio is a highly efficient full-range loudspeaker inspired by the classic Onken cabinet design that first gained acclaim amongst Japan’s audiophile community in the 1970s. Reimagined in a more compact and living-room-friendly format, it retains the qualities that made the original so highly regarded, delivering bass that is natural, articulate, and remarkably detailed.
-
At its heart is an 8” full-range driver sourced from Norway, selected for its exceptional efficiency, clarity, and impressive low-frequency extension. The result is a coherent and engaging presentation, combining transparency, dynamics, and musicality in a single-driver design.
-
Particular attention has been given to the crossover and filter network, which utilises audiophile-grade polypropylene capacitors, ceramic resistors, and high-purity inductors. Carefully selected components ensure that the natural character of the driver is preserved, allowing it to perform at its full potential.
-
The cabinet is constructed from 18mm Norwegian pine and extensively reinforced throughout to minimise resonance and provide a rigid, acoustically inert enclosure.
-
Complementing the speakers are custom stands fabricated locally from repurposed carbon steel. Precision-formed from a single sheet, the stands feature a clean, flowing profile and a 2-degree incline, directing the drivers towards the optimum seated listening position. Together, the speaker and stand form a visually distinctive and acoustically refined package.
-
With exceptionally high sensitivity and very low distortion, even at elevated listening levels, The Onken is ideally suited to low-power tube amplification while remaining compatible with a wide range of amplifiers.
-
Supplied as a matched pair.
Highly efficient 8” full-range driver sourced from Norway.
Natural, articulate, and detailed bass response derived from the classic Onken cabinet design.
Exceptionally low distortion, even at high listening levels.
Cabinet constructed from 18mm Norwegian pine and extensively reinforced to minimise resonance.
Audiophile-grade filter network featuring polypropylene capacitors, ceramic resistors, and high-purity inductors.
Custom carbon steel stands fabricated locally from repurposed steel.
2-degree stand inclination optimises driver alignment for the seated listening position.
Transparent, lively, and dynamic sound characteristic of a well-executed full-range design.
Highly sensitive drivers ideally suited to low-power tube amplification.
Available in bespoke finishes and colours on request. Price POA.
Handmade in Manchester, England.
-
Model: The Onken
Frequency Range: 30 Hz – 20,000 Hz
Distortion: Second Harmonic: less than 0.26% from 20 Hz – 20,000 Hz
Third Harmonic: less than 0.44% from 20 Hz – 20,000 Hz
Sensitivity: 94 dB (2.83 V / 1 m)
Long-Term Power Handling: 40 W
Enclosure Volume: 70 litres
Amplifier Requirements: Suitable for amplifiers delivering between 10 W and 40 W into an 8 Ω resistive load
Nominal Impedance: 8 Ω resistive from 20 Hz – 20,000 Hz
Speaker Weight: 21 kg per speaker
Stand Weight: 12 kg per stand

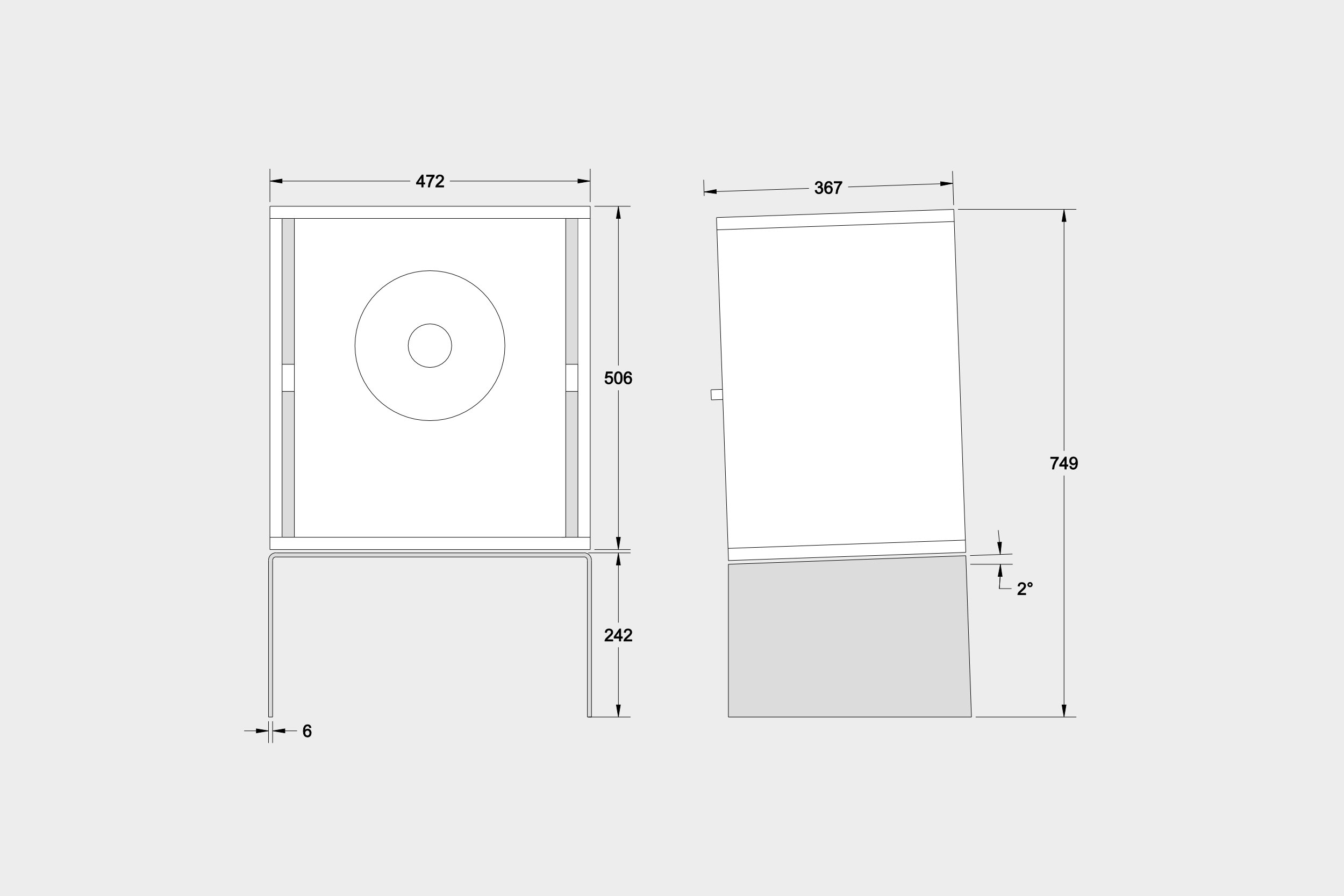

Enclosure Dimensions: 506 × 472 × 360 mm
(H × W × D): 19.9 × 18.6 × 14.2 inAs part of a continual commitment to refinement and musical performance, Turn End Audio reserves the right to improve product specifications without prior notice.
